What Eurorack Mixer can pan both stereo and mono sources?

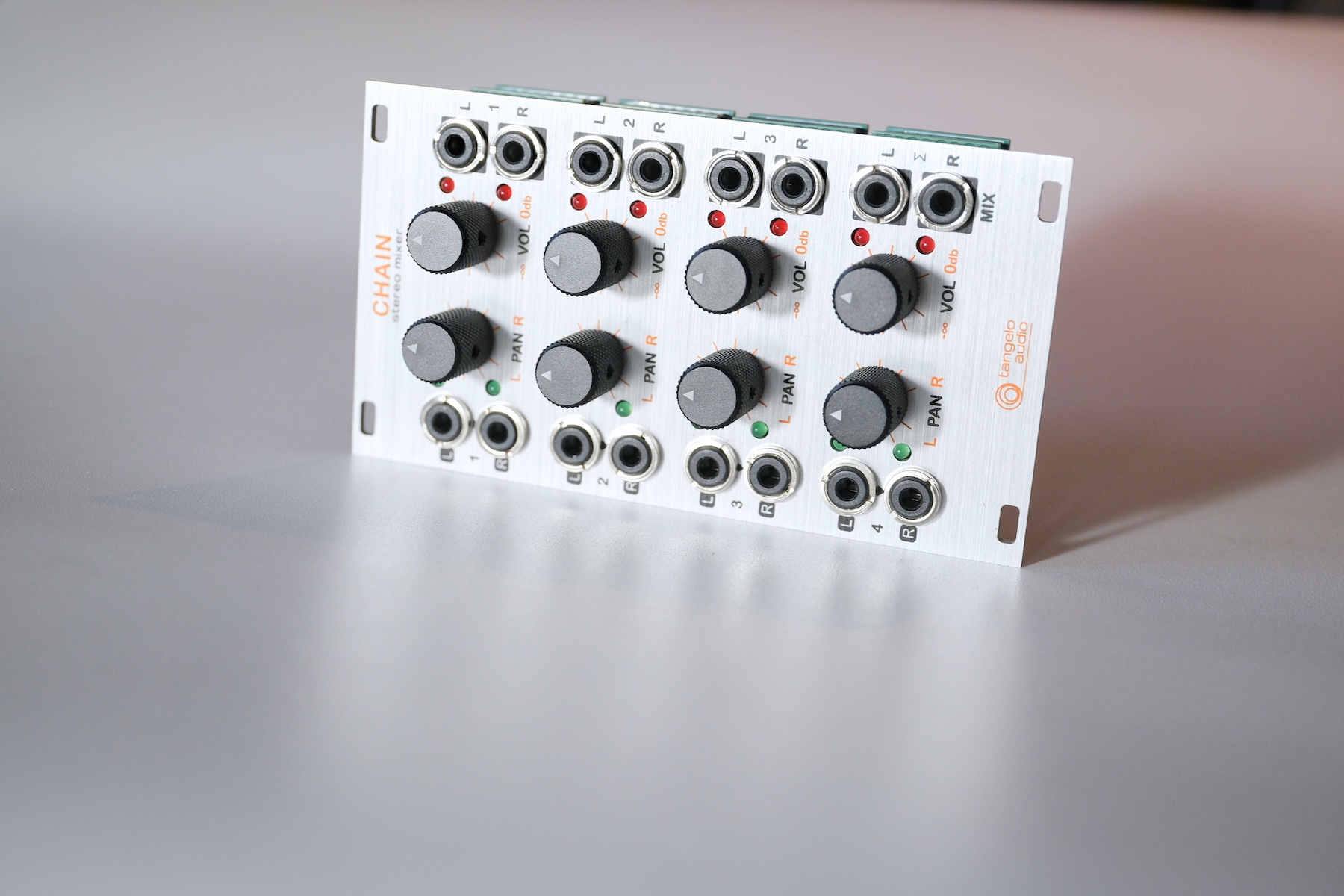

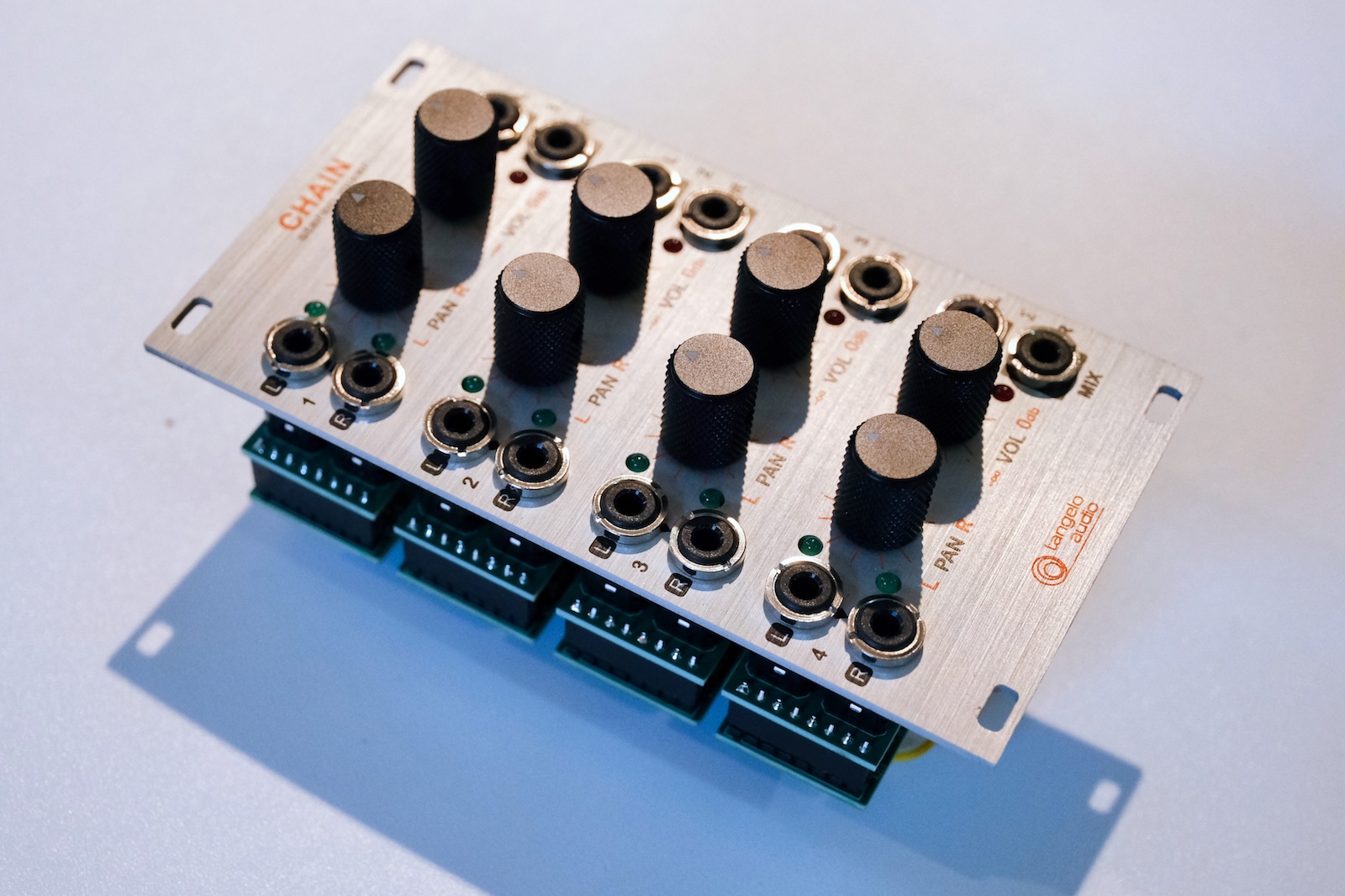

CHAIN is a Eurorack module in 14 HP with 4 tracks – each capable of stereo or mono – with volume and panning controls. We designed this foundational module to provide high-fidelity audio mixing with a simple yet versatile interface.

Stereo or Mono

Versatility at your fingertips
– For mono sources, plug into L and leave R unconnected. Then use the PAN control to place your source in the stereo field.
– For stereo sources, plug your stereo source in L and R sockets. You still have use of the PAN control to adjust the balance of the stereo sources.
– The PAN control has a sine/cosine characteristic for naturalistic panning.

Compact

4 in 14 HP
– CHAIN has 4 tracks that can accept stereo or mono sources, with panning and volume controls.
– CHAIN is basically four LINK modules presented in a 3U format. If you’re interested in the 1U chainable mixer, checkout our LINK page.
–  Volume controls attenuate sources on a logarithmic scale from 0dB to -60dB. Pan controls use a natural sin/cosine law.

Solid Sensible Design

It gets out of your way, so your music production can be the star.
– Simple layout. Everything you need for mixing multiple audio sources and nothing you don’t.
– This ethos is carried over to the electronic circuit design: the audio path is lean for negligible distortion; inputs have ESD and surge protection, low-impedance outputs are overload protected; large capacitors on meter power rails remove crosstalk between signal/clipping meters and the audio path.
– High-quality components used throughout. Same Sky jacks provide a snug no-wiggle fit and are rated for 5000 mating cycles. Texas Instruments audio op-amp OPA1679 provides high-fidelity sound quality.
– Two green LEDs provide input signal level indication for L and R channels. And two red LEDs provide clipping indication for the output of each unit.

Technical Details

Chain is a Eurorack module requiring a compatible enclosure to operate.

Technical documentation: see the Eurorack Link Module Operators Manual.
