Add a solid link to your audio chain

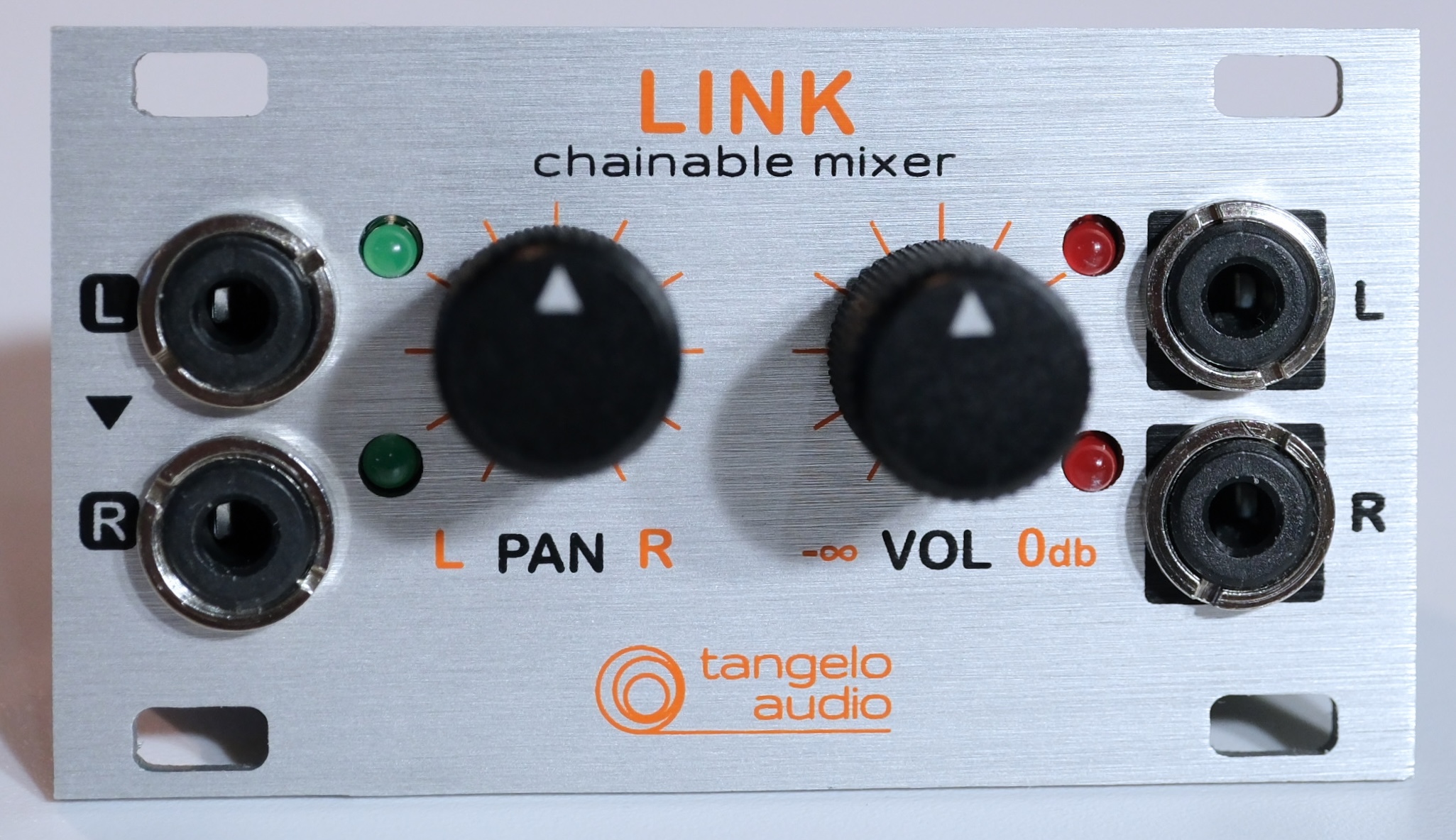

LINK is a chainable mixer for Eurorack format in 1U style. We designed this foundational module to provide high-fidelity audio mixing with a simple yet versatile interface.

Stereo or Mono

Versatility at your fingertips
– For mono sources, plug into L and leave R unconnected. Then use the PAN control to place your source in the stereo field.
– For stereo sources, plug your stereo source in L and R sockets. You still have use of the PAN control to adjust the balance of the stereo sources.
– The PAN control has a sine/cosine characteristic for naturalistic panning.

Chainable

Choose the number of Links you need for your set-up
– Each unit handles 1 stereo (or mono) input. Purchase only as many Links as you need for your setup; and you can always buy more whenever you need.
– LINK is presented in the convenient 1U format; for the more-typical 3U Eurorack format, check out our CHAIN unit based on this technology.
– Independent volume control will attenuate sources on a logarithmic scale from 0dB to -60dB.

Solid Sensible Design

It gets out of your way, so your music production can be the star.
– Simple layout. Everything you need for mixing multiple audio sources and nothing you don’t.
– This ethos is carried over to the electronic circuit design: the audio path is lean for negligible distortion; inputs have ESD and surge protection, low-impedance outputs are overload protected; large capacitors on meter power rails remove crosstalk between signal/clipping meters and the audio path.
– High-quality components used throughout. Same Sky jacks provide a snug no-wiggle fit and are rated for 5000 mating cycles. Texas Instruments audio op-amp OPA1679 provides high-fidelity sound quality.
– Two green LEDs provide input signal level indication for L and R channels. And two red LEDs provide clipping indication for the output of each unit.

Technical Details

Link is a Eurorack module requiring a compatible enclosure to operate. It’s in the 1U Intellijel format (not the Pulp Logic format).

Technical documentation: Eurorack Link Module Operators Manual.
